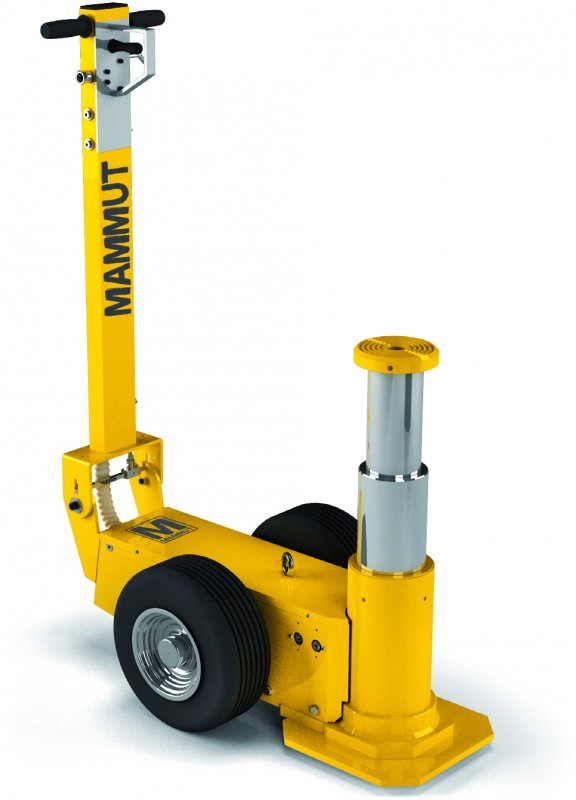

M80/42

Mining heavy duty air-hydraulic jack

Mammut Air / Hydraulic heavy vehicle jacks are engineered and manufactured to offer all customers a
lifting solution that is reliable, safe and easy to use.
– Lightweight, quiet, compact and easy to manoeuvre.
– Optional remote control available for extra safety.
– Folding handle.
– Wide range of models and capacities from 60 t to 150 t.
– Designed for tough Australian conditions.
– Pneumatic tires for easy manoeuvrability.
– Internal check valves to prevent unintentional decent.
– Load Blocks available for mechanical lock and to turn jack into a jack stand.

Download M80/42 Datasheet





Technical Data

Capacity: 80/50 t   /   88.2/55.1 ton
Net weight: 145 Kg   /   320 lb
Working air pressure: 10-12 bar   /   145-174 psi
Air consumption: 600 nl/min
Max stroke: 418 mm   /   16.5 in
Min. height: 420 mm   /   16.5 in
Number of pistons: 2
Pistons stroke: 196 – 222 mm   /   7.7 – 8.7 in



JACK APPLICATIONS

Trains
Mechanical Shovels
Special Vehicles
Dumpers
Tanks
Bulldozers
Lorry Mounted Cranes



Compatible accessories

M4096 Remote Control
M4923 Load Block Holder
M4905 Safety Load Block H100 M/F 177mm
M4906 Safety Load Block H100 F/F 177mm
M4907 Safety Load Block H50 M/F 177mm
M4933 Extension Holder R
M4934 Extension Holder L
M4937 Extension 150 mm
M4938 Extension 250 mm
M4939 Extension 300 mm
LBS80 Load Block Set (Includes 3 x M4905, 1 x M4906, 1 x M4907, 1 x M4923)
A04492 Tilt Saddle



size and dimensions
